  • darren s black
    June 2, 2020 at 6:50 pm
    Post count: 0
    #39131 Reply |

    bought SKU 20017408006 12/24v step down to 5v regulator.

    turns out to be adjustable not fixed. Which was the only reason I got this one. It is listed as 5v step down.

    so obviously I had to  change it, the picture shows cutting something the is circled in red on instructions. I have no idea what as i don’t see anything on board there. I made a small cut between 2 contacts that are partially in circled area. Plugged board in and in fried and smoked. Please let me know what I am supposed to cut to be able to use this as a 5v step down ( as I was lead to believe by the name ‘DROK DC 12v 24v Step Down to 5v Buck Converter Board’)

    Drok
    Keymaster
    June 3, 2020 at 9:41 am
    Post count: 2971
    #39158 Reply |

    Hello,

    We don’t have SKU 20017408006. Please check if it should be 2001708006

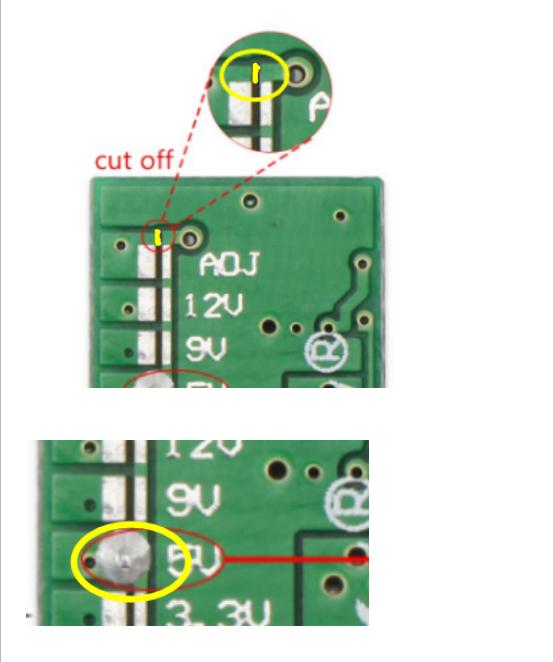

    As shown below, please cut off that part and weld the 5v bonding pad.

    Best regards,

    DROK

    • This reply was modified 4 years, 11 months ago by  Drok.
