  • Leonard Johnson
    May 15, 2019 at 11:21 pm
    Post count: 0
    #35896 Reply |

    I need connection diagrams or data sheet for 100153

    Drok
    Keymaster
    May 16, 2019 at 8:59 am
    Post count: 2971
    #35899 Reply |

    Hello Leonard Johnson,

    Below are two wiring diagrams for your reference. Any more questions, please kindly contact us.

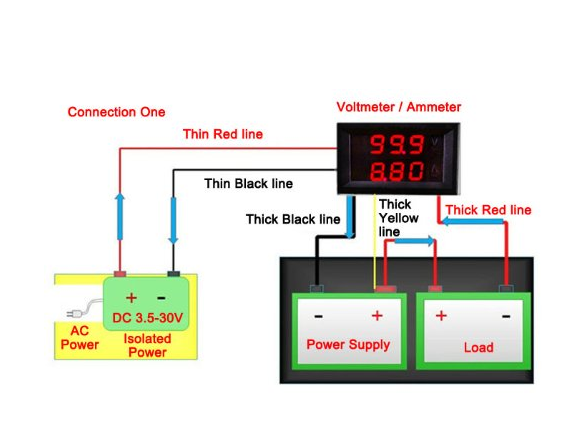

    isolated power supply ：

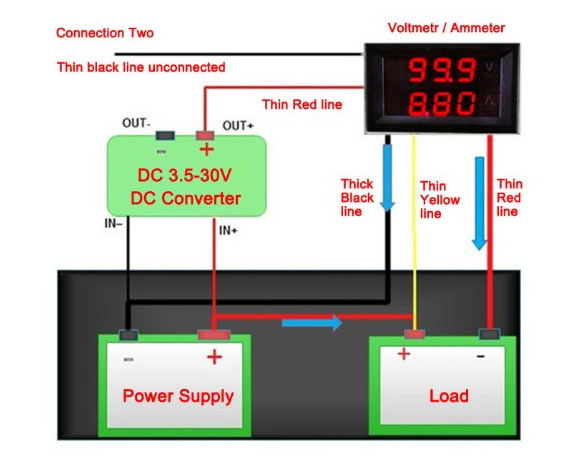

    Meter draws power from measuring circuit:
