  • Ryan Olson
    November 2, 2019 at 8:03 pm
    Post count: 0
    #36979 Reply |

    I have just recieved my purchase of the B07QVXXGVR.  How is this supposed to mount to something?  Like a panel next to my 110/12v converter in a camper trailer.

    Drok
    Keymaster
    November 3, 2019 at 10:03 am
    Post count: 2971
    #36988 Reply |

    Hello Ryan Olson,

    You can install it according to actual situation. Below is the wiring diagram for your reference.

    Best regards.200075

    Ryan Olson
    November 4, 2019 at 3:45 am
    Post count: 0
    #36990 Reply |

    I know the wiring.  How do I mount it to the wall?

    Drok
    Keymaster
    November 4, 2019 at 9:44 am
    Post count: 2971
    #36998 Reply |

    Hello Ryan Olson,

    There are many mounting methods, but we are not sure which suite your actual situation.

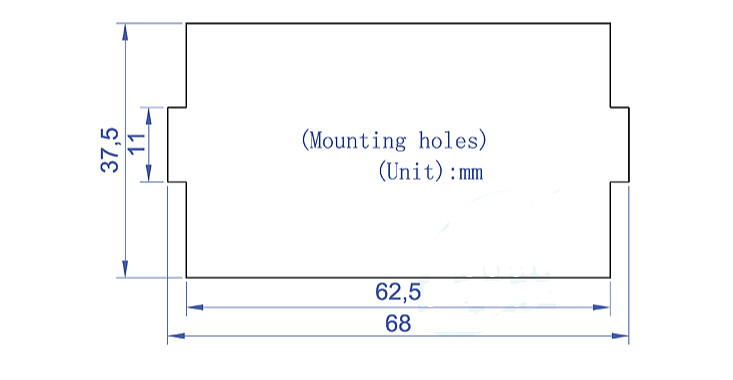

    If you need to open holes, please refer to below size.

    Best regards.
