  • Joe Selch
    November 1, 2018 at 10:22 pm
    Post count: 0
    #35187 Reply |

    The Product Functions and Setting Instructions were packaged with the relay however no wiring diagram or description was included. Maybe it’s so simple a caveman can wire it but I’m still working up to caveman status.

    I can guess the meaning of COM and GND. Should In or Vcc be used for the trigger signal? Will the relay be closing the circuit to CK or CB when triggered? The world wonders…

    Maybe I should just hook up a power supply and see if the smoke comes out…is factory smoke available for repairs?

    Drok
    Keymaster
    November 2, 2018 at 9:45 am
    Post count: 2971
    #35191 Reply |

    Hello Joe Selch，

    Thanks for writing in.

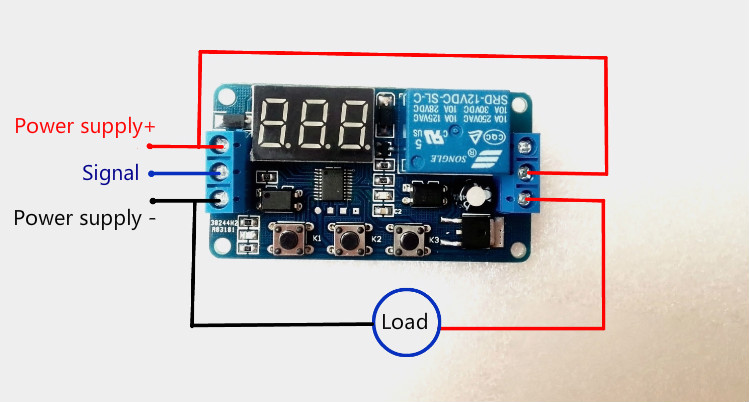

    We are sorry for inconvenience may cause. Here is a wiring for your reference. Hoep it can help you.

    300473
