  • Frank Cottrell
    December 9, 2020 at 2:04 am
    Post count: 0
    #54235 Reply |

    Hello Support, I just wanted to check that on the display board next to the USB Power socket there are 3 pads marked 12V and 5V – I assume these are alternative power inputs with 0V on the Center pad. I want to confirm that I can power the display with a 12V connection here as that would be most convenient.
    I just wanted to confirm this to make sure I don’t damage the board.

    Kind regards,

    Frank Cottrell.



    Drok
    Keymaster
    December 13, 2020 at 7:52 am
    Post count: 2971
    #54630 Reply |

    Hello Frank Cottrell,

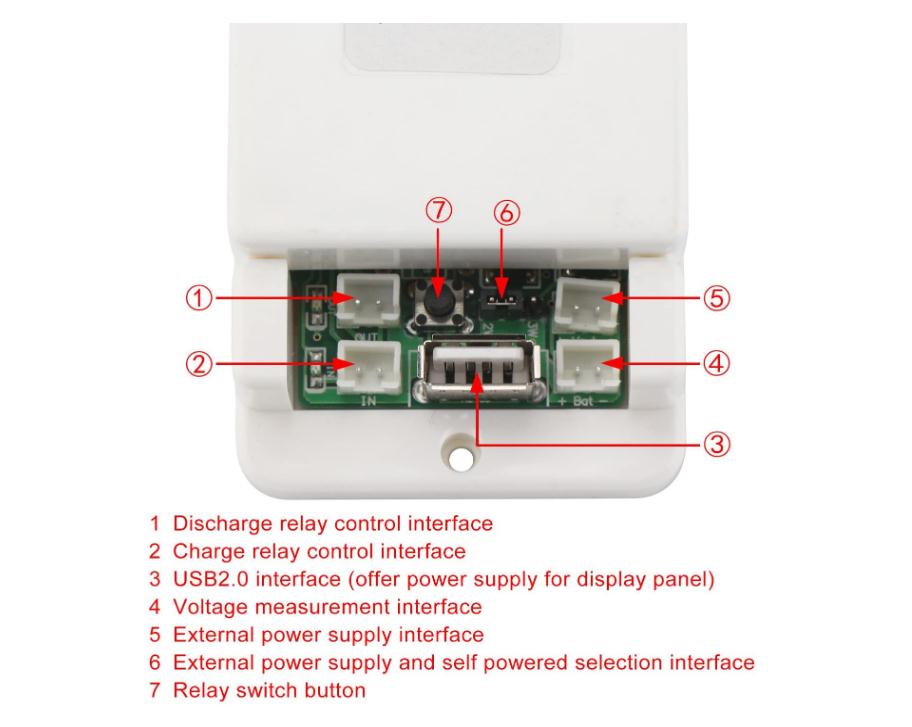

    As shown below, would you please tell us which pad you mean?

    Best regards.

    2001711004
